Events

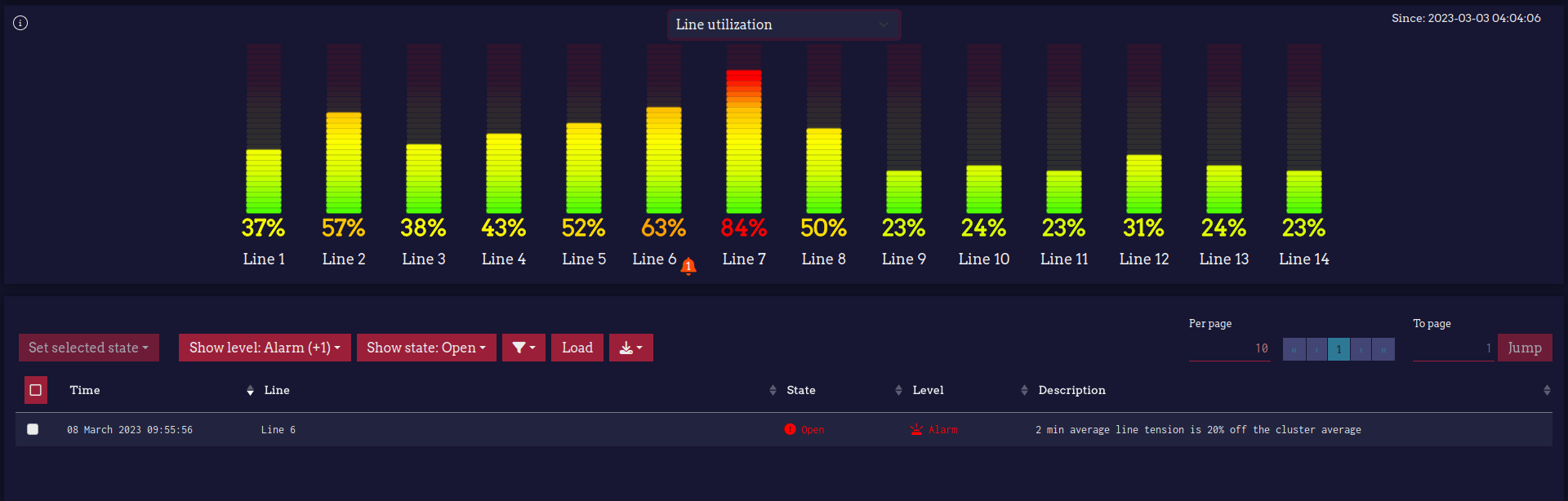

The events tab show the state of the lines, as well as a list of events affecting them.

It is indeed split in 2 main parts.

Lines state panel

The upper part is dedicated to the summary of the lines state. In that view the user can choose between displaying the Cumulated damage or the Utilization of the lines. To this end just click on the button at the top-centre of the panel.

On top of that, the upper panel can be used to select the lines from which the events will be shown in the bottom panel. To this end, click on the bar of the line that must be considered. Lines can be added to the selection pressing Ctrl while clicking on the line bar. Finally, the selection can be reseted, i.e. all the lines are selected, clicking on the background of the panel.

Events panel

The bottom panel lists the events associated to the selected lines. The alarms shown can be filtered by level, state and description using the controls on the top left of the panel. Just set the appropriate filters and press the button Load.

Beside those controls there is a button to export the list of alarms to either .csv tabulated text or .xlsx Microsoft Excel files.

Depending on the number of alarms, several pages of events can be listed. The user can navigate through the pages with the controls at the top-right of the panel.

Finally, users with administration rights can change the state of the events. Please, visit the alerts handling documentation to learn more about this.
